Deployment Storage

Manage and assign deployments to Reactive Engine nodes in a live cluster.

Purpose

Deployment Storage is the central hub for managing which deployments are active on your cluster and how they are distributed across Reactive Engine nodes. It provides a real-time view of deployment assignments, allows uploading new deployments, and lets you configure assignment rules that determine which deployment each node runs.

The Deployment Storage interface is divided into two main tabs:

• Deployment Storage: View controller status and manage deployment configuration
• Log: Monitor deployment-storage component logs

Deployment Storage Tab

The main tab displays controller information at the top and deployment configuration below.

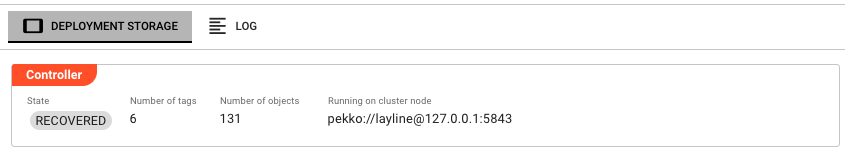

Controller Information

The Controller panel displays the current state of the Deployment Storage component:

Field	Description
State	Current operational state of the deployment storage controller
Number of tags	Total deployment tags stored in the deployment database
Number of objects	Total objects stored in the object database
Running on cluster node	The cluster node address where the deployment storage controller is currently running

Deployment Configuration

The Deployment Configuration section contains two sub-tabs for managing deployments and their assignments.

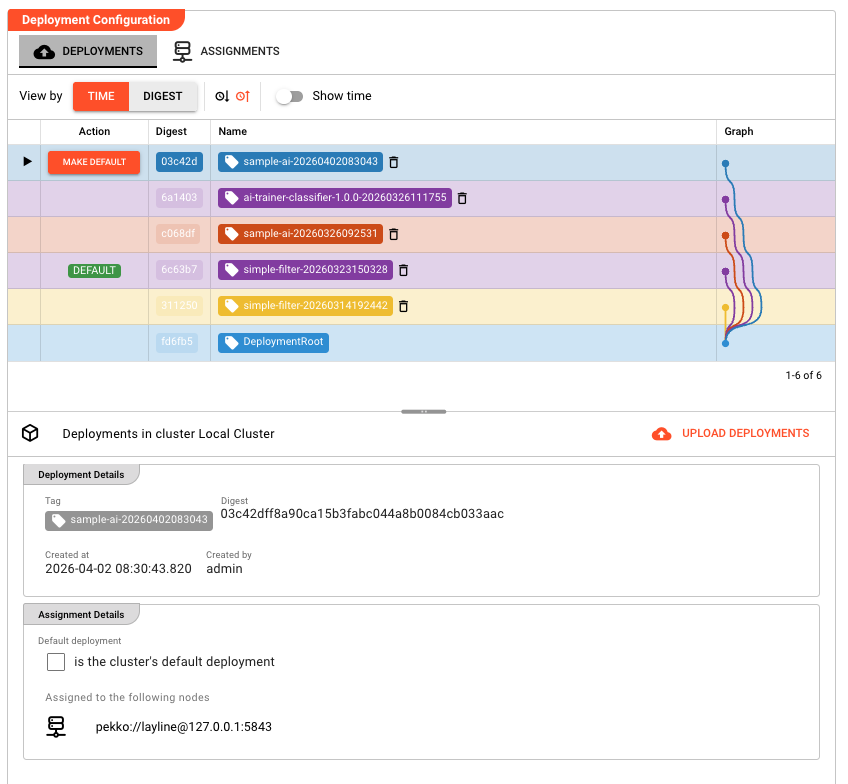

Deployments Tab

The Deployments tab shows all deployments that are available on the cluster in a table. The rightmost column of the table displays a graph that visualizes the dependency relationships between deployments hierarchically.

The table columns include:

Column	Description
Action	Indicates whether a deployment is the cluster default (DEFAULT badge), or a Make default button for the selected row
Digest	Short digest label for the deployment. A DUP badge appears if the deployment is identical to a previous one
Created	Timestamp when the deployment was created (toggleable via Show time)
Name	The deployment tag name. Select a row to view its details in the panel below
Graph	Visualization showing how this deployment relates to others in the hierarchy

At the top of the table, you can switch the view mode:

• View by time — Displays deployments in chronological order, with ascending/descending sort options
• View by digest — Groups deployments by their digest to identify identical or related deployments

Making a Deployment Active

The primary action in the Deployments tab is to make a specific deployment the default for the cluster. Clicking Make default on a selected row immediately activates that deployment across all nodes that do not have a more specific node or role assignment.

There is always one special tag called DeploymentRoot. This is the zero deployment — it contains no workflows and means that no deployment runs on the cluster. Making DeploymentRoot the default effectively shuts down all processing. DeploymentRoot is always present and cannot be deleted.

Deleting Deployments

Deployments that can be removed display a delete (trash) icon next to their name. Click the icon to remove the tag from the cluster. Note that you cannot delete the currently active default deployment, nor can you delete DeploymentRoot.

Deployment Details Panel

When you select a deployment from the table, the bottom panel shows its details:

• Tag — The selected deployment's name
• Other tags for this digest — Any alternate tags pointing to the same deployment content
• Digest — The full deployment digest
• Description — Deployment description (if provided)
• Created at / Created by — Timestamp and user who created the deployment
• Assignment Details — Whether this is the default deployment and which nodes it is explicitly assigned to

The bottom panel also provides the Upload Deployments button for adding new deployments to the cluster.

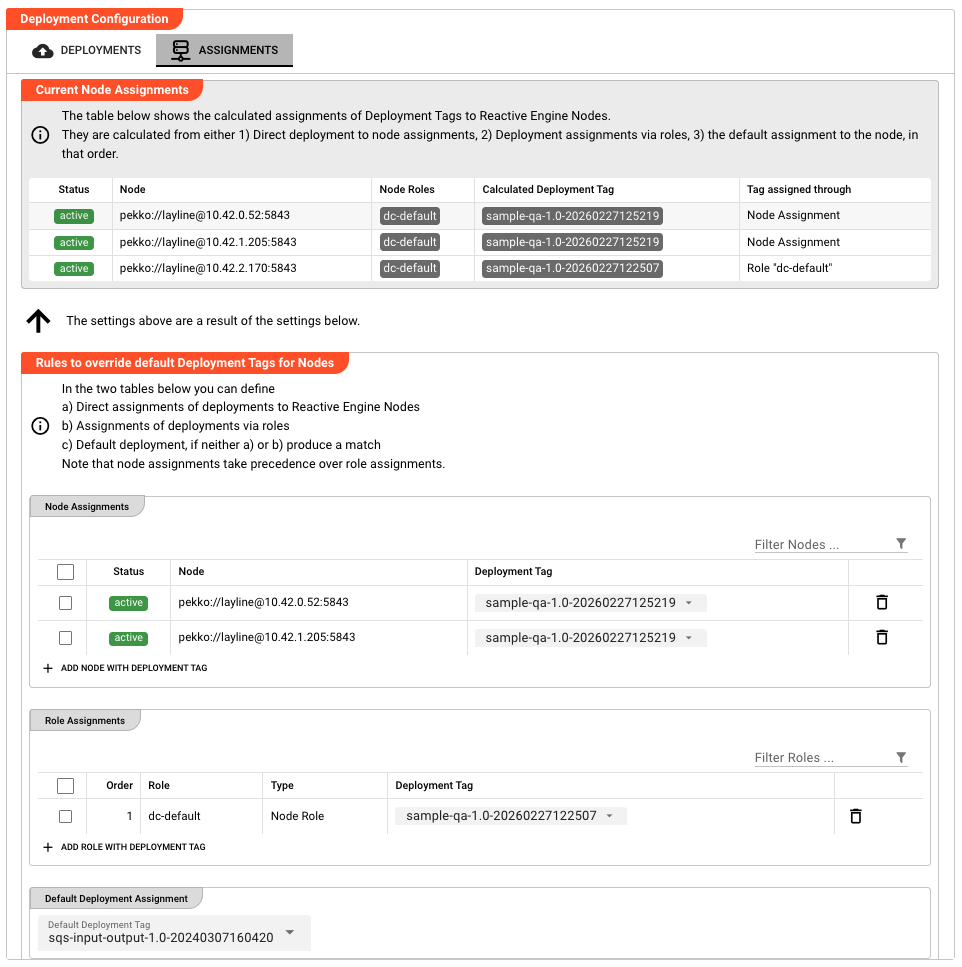

Assignments Tab

The Assignments tab shows how deployments are assigned to Reactive Engine nodes and lets you configure assignment rules.

One deployment per engine

A single Reactive Engine node can only run one deployment at a time. It is not possible for an engine to execute two or more deployments simultaneously.

Current Node Assignments

The top section displays a table showing the calculated deployment tag for each node in the cluster:

Column	Description
Status	Whether the node is active (green) or inactive (red)
Node	The cluster node address
Node Roles	Roles assigned to this node (e.g., "dc-default")
Calculated Deployment Tag	The deployment tag currently assigned to this node
Tag assigned through	Which rule determined this assignment (Node Assignment, Role, or default)

The assignments are calculated using the following precedence (highest to lowest):

1. Node Assignment — A deployment explicitly assigned to a specific node
2. Role Assignment — A deployment assigned to a role that the node has
3. Default Assignment — The fallback deployment used when no other rule matches

Assignment Rules

Below the Current Node Assignments table, an arrow indicates that the calculated assignments above are a result of the rules configured below. The Rules to override default Deployment Tags for Nodes section contains three configuration areas:

Direct Node Assignments

Assign specific deployments to individual nodes. These take highest precedence and override both role and default assignments.

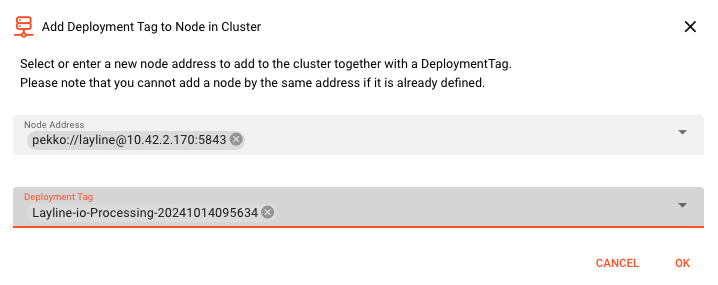

Click Add Node Assignment to open a dialog where you select the node address and the deployment tag to assign.

Role Assignments

Assign deployments to node roles. Any node with that role will receive the assigned deployment unless a direct node assignment overrides it.

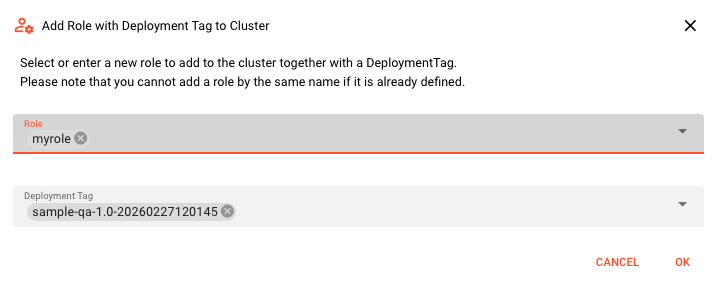

Click Add Role Assignment to open a dialog where you select the role and the deployment tag to assign.

Default Assignment

Set the fallback deployment tag that applies to all nodes not matched by either a direct node assignment or a role assignment.

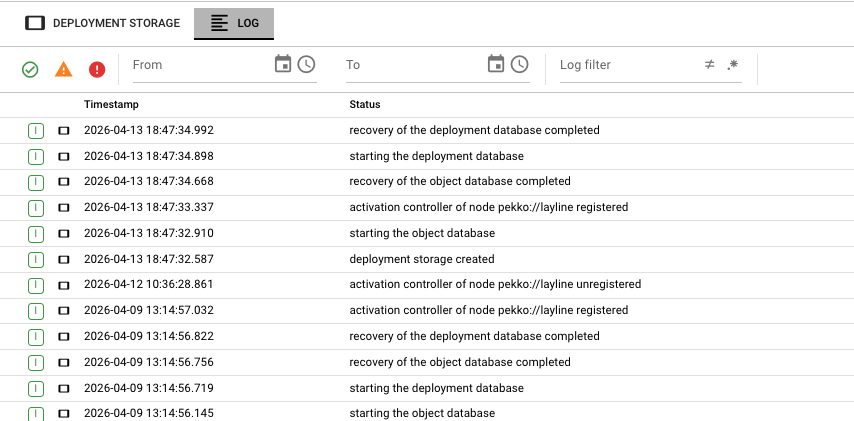

Log Tab

The Log tab displays real-time logs from the deployment-storage component. This is useful for:

• Troubleshooting deployment upload issues
• Monitoring deployment activation and deactivation
• Debugging assignment-related problems

Common Tasks

Setting the Default Deployment

The most common task is to make a deployment the cluster default so that all engines run it.

1. Go to the Deployments tab
2. Select the deployment you want to activate
3. Click Make default
4. The deployment becomes active immediately on all nodes without a more specific assignment

For simpler setups (single-node or single-deployment clusters), using the default assignment is usually sufficient. Direct node assignments and role assignments are intended for more sophisticated multi-node clusters that need to run multiple deployments in parallel.

Uploading a New Deployment

New deployments are not created directly in Deployment Storage. They are generated in the Project → Deployments tab by using the Write to file feature on one of the deployment assets:

• Deployment Composition
• Engine Configuration
• Scheduler Setting
• Tag Setting

The generated file is in JSON format.

To upload it to the cluster:

1. In the Deployments tab, click the Upload Deployments button in the bottom panel
2. Select or drag-and-drop the JSON deployment file
3. The deployment will be uploaded and added to the deployment table
4. Once uploaded, the deployment can be made the default or assigned to specific nodes

Assigning a Deployment to a Node

1. Go to the Assignments tab
2. In the Node Assignments section, click Add Node Assignment
3. Select the node and the deployment tag to assign
4. The assignment takes effect immediately

Assigning a Deployment via Role

1. Go to the Assignments tab
2. In the Role Assignments section, click Add Role Assignment
3. Select the role and the deployment tag
4. All nodes with that role will receive this deployment (unless they have a direct node assignment)

Setting the Fallback Deployment

1. Go to the Assignments tab
2. In the Default Assignment section, select the deployment tag to use as fallback
3. This deployment will be used for any node not matched by node or role assignments

See Also

• Cluster Login — Connect to a cluster to access Deployment Storage
• Engine Deployment — Asset for configuring deployment settings
• Engine State — Monitor running engines and their deployments
