Install with Docker

Prerequisites​

Docker must be installed on your system. If it is not, install it first: Get Docker.

Download and run​

The following command pulls and starts the layline.io sample image:

docker run -p 5841:5841 -p 5842:5842 docker.io/layline/layline-samples:1.2.4

Port mapping:

Internal portExternal portComponent
58415841Configuration Server (UI + REST)
58425842Reactive Engine (REST)

If either port is already in use on your host, change the external port number (left side of the colon).

Example output (version 2.5.4):

docker run -p 5841:5841 -p 5842:5842 docker.io/layline/layline-samples:2.5.4
Unable to find image 'layline/layline-samples:2.5.4' locally
2.5.4: Pulling from layline/layline-samples
...
Status: Downloaded newer image for layline/layline-samples:2.5.4

25-03-01 08:00:10.116 INFO Layline         - [LAY-00050] ###################################################################
25-03-01 08:00:10.122 INFO Layline         - [LAY-00050] #  Layline Reactive Engine 2.5.4                                  #
25-03-01 08:00:10.122 INFO Layline         - [LAY-00050] #  Copyright (C) 2018-2025 layline.io GmbH <https://layline.io>   #
25-03-01 08:00:10.122 INFO Layline         - [LAY-00050] ###################################################################
25-03-01 08:00:13.197 INFO ConfigServer    - [LAY-00050] ###################################################################
25-03-01 08:00:13.201 INFO ConfigServer    - [LAY-00050] #  Layline Config Server 2.5.4                                    #
25-03-01 08:00:13.202 INFO ConfigServer    - [LAY-00050] #  Copyright (C) 2018-2025 layline.io GmbH <https://layline.io>   #
25-03-01 08:00:13.203 INFO ConfigServer    - [LAY-00050] ###################################################################
...
25-03-01 08:00:21.034 INFO Layline        - [LAY-11009] all system components are up and running

Both the Reactive Engine and the Configuration Server start automatically. No further action is needed.

Open the Configuration Center​

Once the container is running, open a web browser and go to:

  • macOS / Linux: http://localhost:5841
  • Windows: http://localhost:5841 (or use the Docker container's IP address if localhost does not work)

You should be taken to the login page:


The default credentials are admin / admin. After logging in you should see the Configuration Center dashboard:


Verify the Reactive Engine is running​

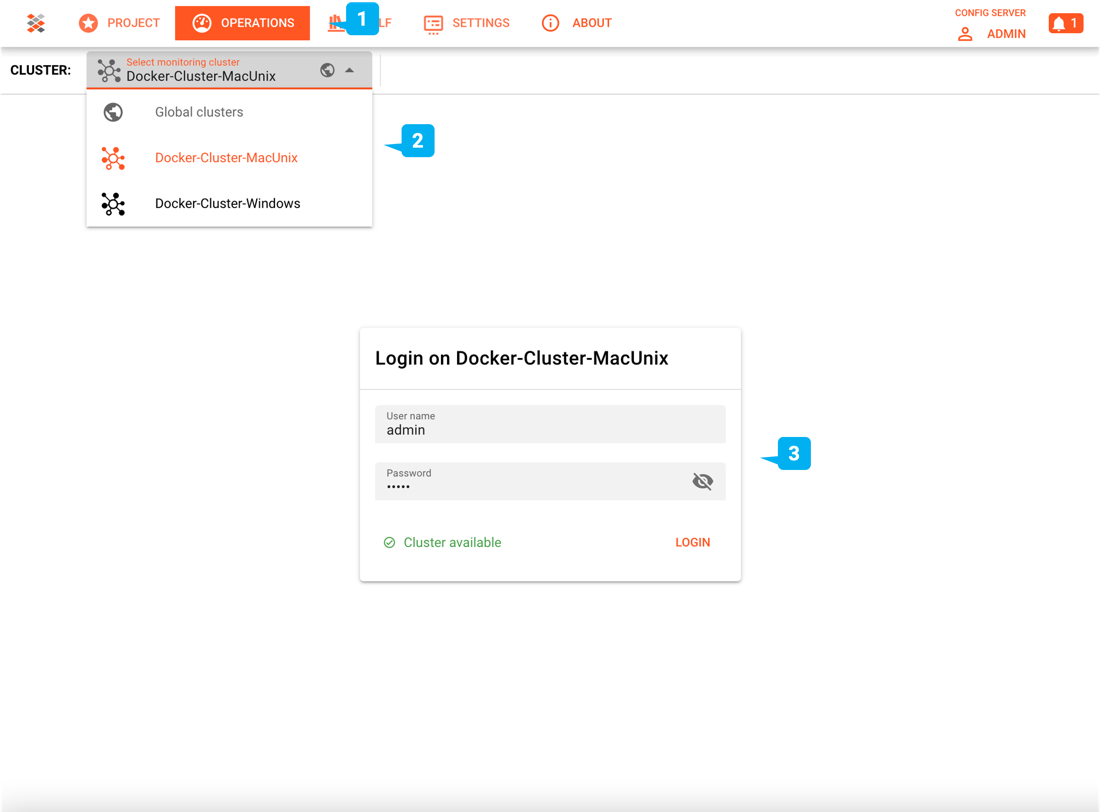

  1. In the left navigation, go to Operations → Cluster.
  2. Log in to the cluster when prompted (credentials: admin / admin).

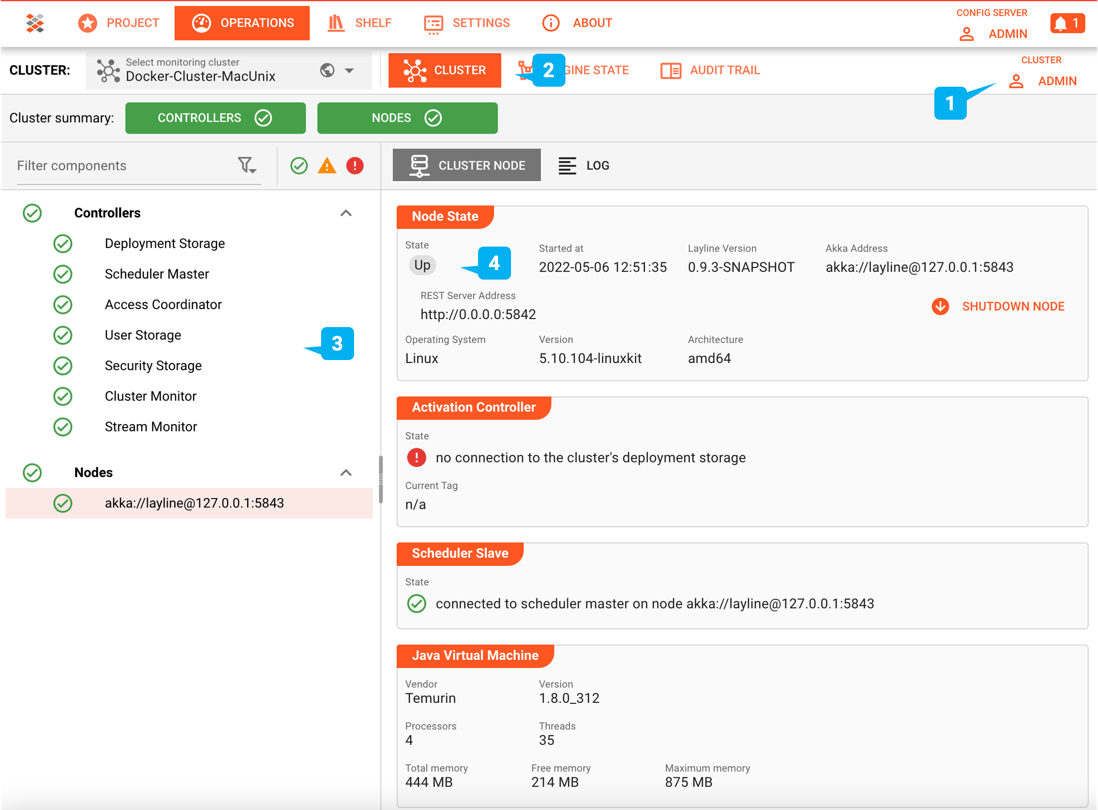

  3. Confirm all nodes show status Up in green.


Windows: Reactive Engine login fails

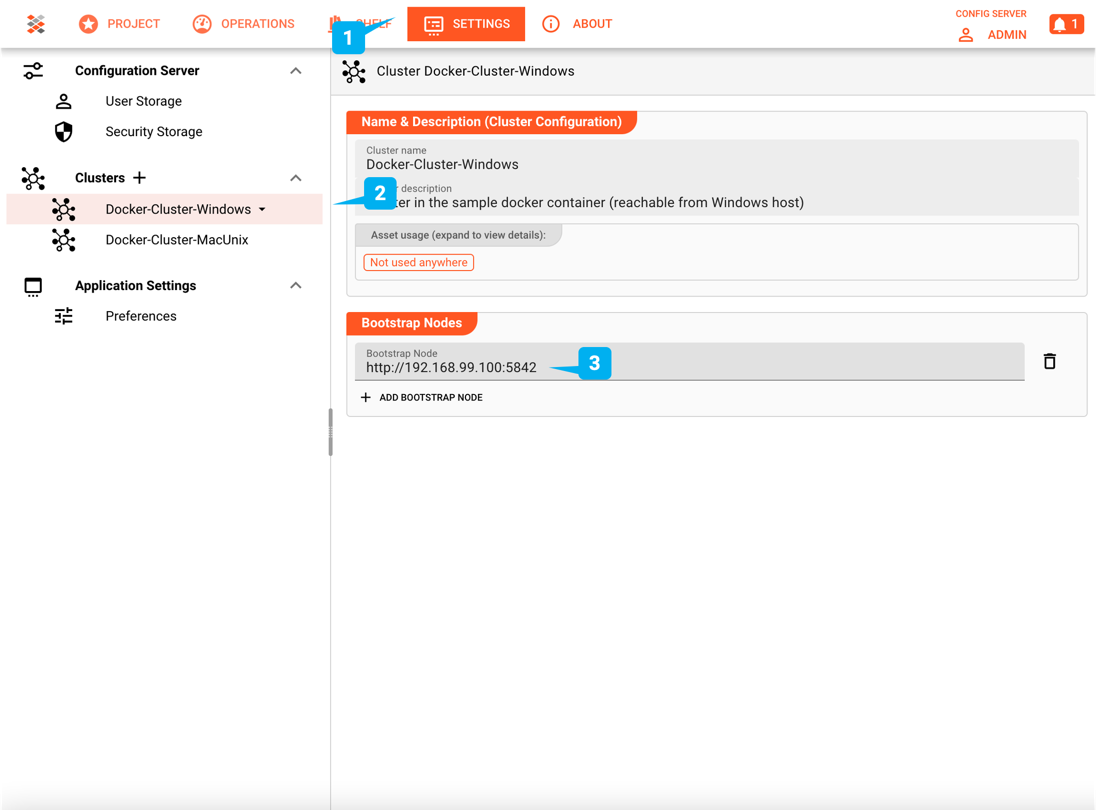

On Windows, if the Docker container's IP is not 192.168.100.199, the pre-configured cluster address will not work. Fix it:

  1. Go to Settings in the Configuration Center.
  2. Select Docker-Cluster-Windows in the left panel.
  3. Update the IP address to match your Docker container's actual IP. Keep port 5842.

Note: This setting does not persist when the container is stopped.

Sample Projects​

The Docker image includes pre-installed sample Projects. To explore them:

  1. In the Configuration Center, click Project → Open.
  2. Select any project from the list and open it.


Container internals​

Access a shell​

# Find the running container ID
docker container ls

# Open a bash shell inside it
docker exec -it <container-id> /bin/bash

Directory layout​

/opt/layline/ — layline.io installation:

/opt/layline/
├── bin/                        # Binaries (config-server, reactive-engine, layctl, ...)
├── config/
│   ├── config-server/
│   │   └── application.conf    # Runtime config for Config Server
│   └── reactive-engine/
│       └── application.conf    # Runtime config for Reactive Engine
├── jre/                        # Bundled Java runtime
├── lib/                        # layline.io libraries
└── samples/                    # Sample assets

/home/layline/ — data and projects:

/home/layline/
├── layline-data/
│   ├── in/                     # Input directory for sample file pipelines
│   ├── out/                    # Processed output files
│   ├── done/                   # Files moved here after successful processing
│   └── error/                  # Files that caused processing errors
├── layline-projects/           # Pre-installed sample projects
│   ├── sample-file-copy/
│   └── sample-kafka/
└── sample-data/                # Example input files for sample projects
    └── bank-transactions/
        ├── 100-BT-Records.csv
        └── 2-BT-Records.csv

Production Deployment​

This Docker setup is ideal for quick evaluation and development. For production deployments requiring high availability and scalability across multiple machines, see:

Can't find what you are looking for?

Please note, that the creation of the online documentation is Work-In-Progress. It is constantly being updated. should you have questions or suggestions, please don't hesitate to contact us at support [at] layline.io .
