AI Classifier

Purpose

The AI Classifier Processor classifies messages within a Workflow using a trained AI model. It takes one or more input values from the current message, passes them to a supervised machine learning model, and writes the predicted classification result directly into a message attribute.

Classification is useful for tasks such as:

• Assigning a category to a transaction based on its attributes
• Detecting fraud based on transaction patterns
• Routing messages to different downstream processes based on predicted outcomes
• Enriching messages with inferred data

The processor evaluates a configurable ordered list of rules. Each rule specifies its own AI model, trained model file, input mappings, and classification mappings. Rules are evaluated top to bottom — the first rule whose conditions match the current message is applied, and the remaining rules are skipped.

Use this Processor to:

• Apply trained AI models to classify messages in real time within a Workflow
• Route messages to different downstream processes based on predicted categories
• Enrich messages with inferred attributes derived from their content

Prerequisite

This processor requires an AI Model Resource that defines the model's technical details and a reference to a trained model stored in the cluster's AI Storage. If you need to train a model first, use the AI Trainer Processor.

Configuration

Name & Description

Name: Name of the Asset. Spaces are not allowed in the name.

Description: Enter a description.

Input Ports

This Processor can only have one Input Port from which it receives data to process.

A port can have a name and description. A Name is mandatory.

You cannot delete the only Input Port.

Output Ports

This Processor can only have one Output Port to send messages on within the Workflow.

A port can have a name and description. A Port Name is mandatory.

You cannot delete the only Output Port.

Classifier Rules

This is the core configuration area. The processor maintains an ordered list of rules. Rules are evaluated top to bottom — the first rule whose conditions match the current message wins.

The rules editor shows:

• A rule selector dropdown listing all configured rules, in evaluation order
• ↑ / ↓ buttons to reorder rules (order matters — see Rule Evaluation Order below)
• An Add a new rule option at the top of the dropdown

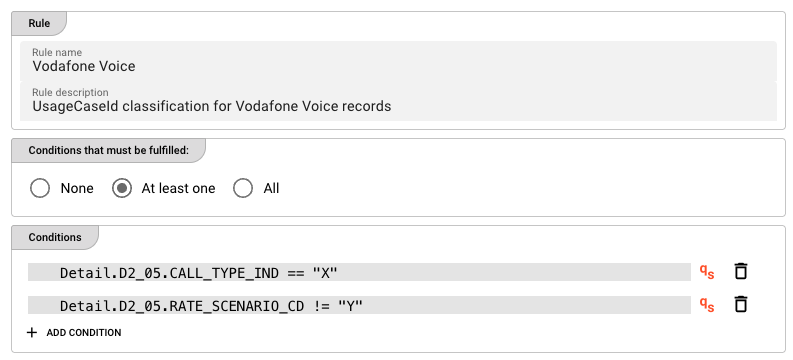

Rule: General

Rule name — a human-readable name for this rule (e.g., Vodafone Voice).

Rule description — optional free-text description of what this rule does.

Rule: Conditions

Define when this rule should be applied. The condition is evaluated against the current message. If true, the rule fires and remaining rules are skipped.

Logical operator — how multiple conditions are combined:

Option	Meaning
None	No conditions — the rule always fires (no condition rows are shown)
At least one	OR logic — the rule fires if at least one condition is true
All	AND logic — the rule fires only if all conditions are true

Conditions — each condition is a QuickScript expression.

Click + ADD CONDITION to add a new condition row. Each row has:

• A QuickScript expression field — click the field or use the qS indicator to confirm QuickScript mode is active
• qS — indicator that the field accepts QuickScript expressions
• A delete button (trash icon) to remove the condition

QuickScript Conditions

Conditions are written as QuickScript expressions — a lightweight expression language used throughout layline.io to reference message fields and write conditional logic. QuickScript allows you to read attributes from the message structure (e.g., Detail.D2_05.CALL_TYPE_IND) and compare them using standard operators.

For the full QuickScript language reference, see QuickScript Language Reference.

Example QuickScript conditions:

Detail.D2_05.CALL_TYPE_IND == "X"
Detail.D2_05.RATE_SCENARIO_CD != "Y"
amount > 1000
recordType == "PREMIUM"

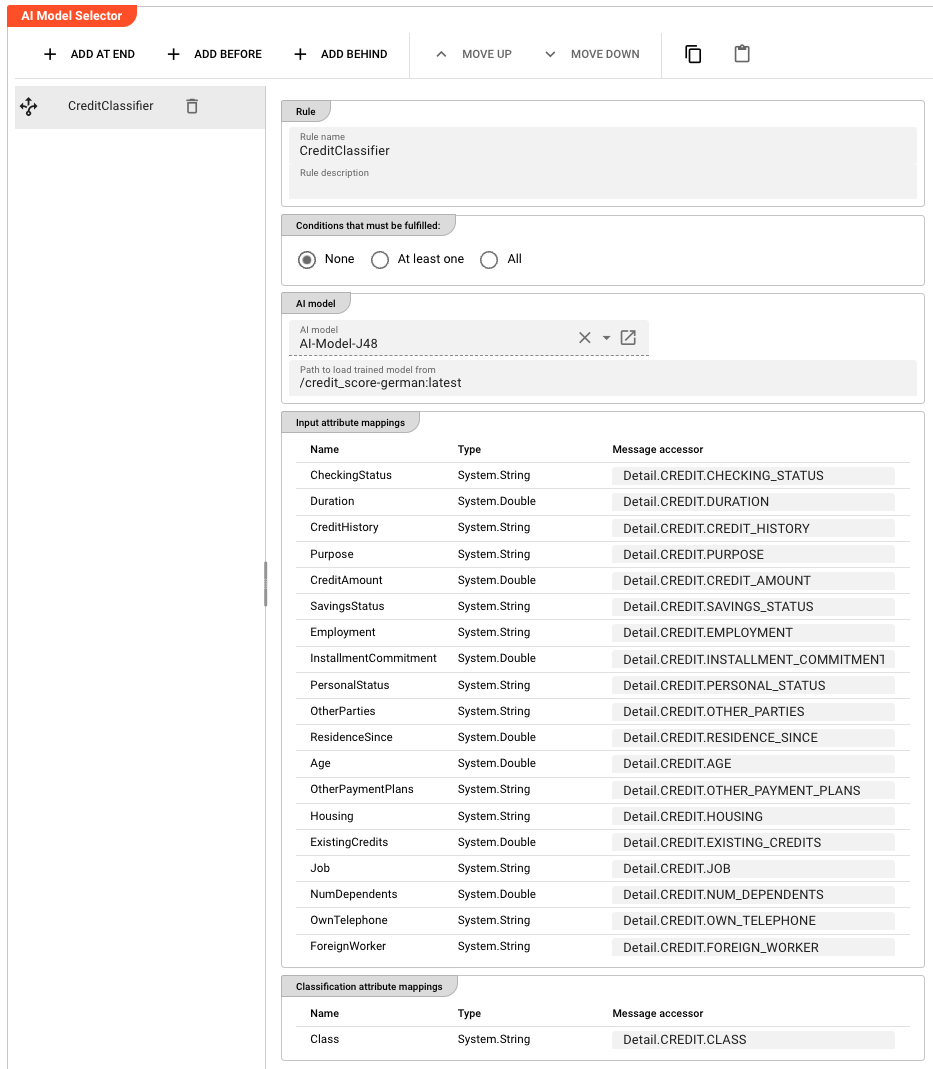

Rule: AI model

AI model — a reference to an AI Model Resource in the Project. The Resource defines the model type (e.g., Weka) and which attributes are available as inputs and outputs.

Path in AI Storage — the path of the trained model in AI Storage (e.g., models/my-classifier). Append :<version> to reference a specific version (e.g., models/my-classifier:3) or :latest for the most recent version. Supports macros for per-environment values.

Rule: Input attribute mappings

Defines which Data Dictionary attributes from the AI model should receive values from the current message.

Each row maps a Data Dictionary attribute to a message accessor:

Column	Description
Name	The attribute name from the AI Model Resource's input schema (read-only)
Type	The attribute's data type from the Data Dictionary (read-only)
Message accessor	A message accessor expression that reads the value from the current message (e.g., Detail.D2_05.CALL_TYPE_IND)

The values read from the message via these accessors are assembled into a feature vector and passed to the trained model for prediction.

Rule: Classification attribute mappings

Defines where the classifier should write its prediction results back into the message.

Column	Description
Name	The output attribute name from the AI Model Resource (read-only)
Type	The attribute's data type from the Data Dictionary (read-only)
Message accessor	A message accessor expression that specifies where to write the result (e.g., Detail.MD.USAGE_CASE_ID)

The model returns a predicted class label. This value is written directly to the specified message attribute via the accessor. No return value handling is needed in your Workflow.

Behavior

Rule Evaluation Order

Rules are evaluated strictly in the order they appear in the rules list. The first rule whose conditions match the current message is applied, and all subsequent rules are skipped for that message.

This means rule order matters. Place your most specific or highest-priority rules at the top. A catch-all rule with None conditions (which always matches) should always be placed last.

How Classification Works (Step by Step)

When a message arrives:

1. The processor iterates through the rules list in order
2. For each rule, it evaluates the QuickScript conditions against the message using the selected logical operator (None / At least one / All)
3. If the conditions match (or the rule has None conditions), the processor: a. Reads values from the message using the input attribute mappings b. Assembles them into a feature vector c. Passes the vector to the trained AI model (loaded from AI Storage) d. Receives the predicted class label from the model e. Writes the prediction to the message attribute specified in the classification attribute mappings
4. The message is emitted on the output port to the next processor in the Workflow

If no rule's conditions match, the message passes through unchanged (no classification is applied).

Inheritance

All settings support inheritance — a child Asset can override individual rules or rule fields while inheriting the rest from its parent.

Trained Model Requirements

• The model must be stored in the cluster's AI Storage at the path specified in Path in AI Storage
• Append :<version> to reference a specific trained version (e.g., models/my-classifier:3) or :latest for the most recent version
• The model's input schema (number and type of features) must match the Input attribute mappings configured in the rule
• The model's output must be a class label (string or categorical) — the classifier writes this label directly to the configured message attribute

Example

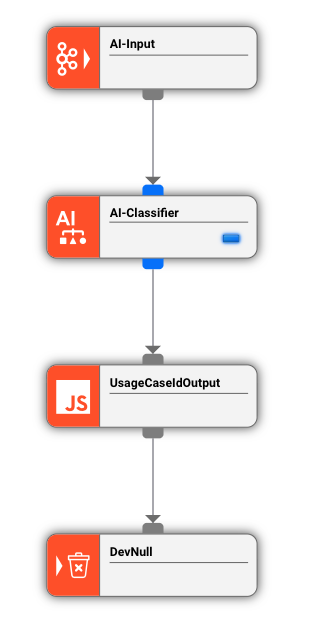

A Workflow reads raw usage records from a telecom source. Before further processing, each record needs to be classified by its usage type based on multiple record attributes.

The JavaScript Processor first extracts and validates the raw fields. The AI Classifier then applies the trained model to write the classification result.

AI Classifier configuration (ClassifyUsageType):

Rule: Vodafone Voice — fires only on Vodafone Voice records:

Field	Value
Logical operator	At least one
Condition 1	Detail.D2_05.CALL_TYPE_IND == "X"
Condition 2	Detail.D2_05.RATE_SCENARIO_CD != "Y"
AI model	UsageClassifier
Path in AI Storage	models/usage-classifier-v2

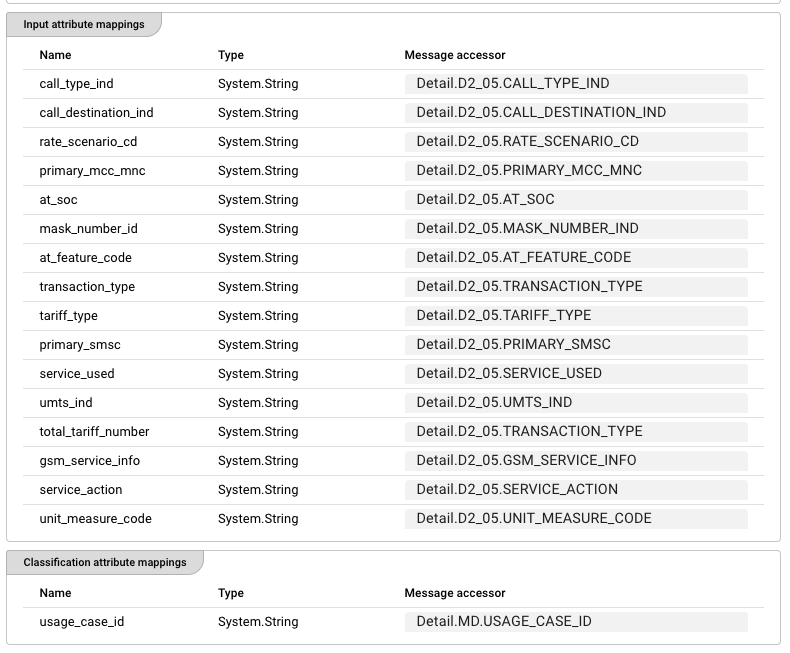

Input attribute mappings (16 features):

Attribute	Message accessor
call_type_ind	Detail.D2_05.CALL_TYPE_IND
call_destination_ind	Detail.D2_05.CALL_DESTINATION_IND
rate_scenario_cd	Detail.D2_05.RATE_SCENARIO_CD
... (12 more attributes)	Detail.D2_05.*

Classification attribute mappings:

Attribute	Message accessor
usage_case_id	Detail.MD.USAGE_CASE_ID

What happens at runtime:

1. A message arrives with Detail.D2_05.CALL_TYPE_IND = "X" and Detail.D2_05.RATE_SCENARIO_CD = "Z"
2. The Vodafone Voice rule fires (at least one condition matches)
3. The processor reads all 16 input attributes from the message
4. The trained model from AI Storage predicts the class label, e.g., VOICE_STANDARD
5. The processor writes VOICE_STANDARD to Detail.MD.USAGE_CASE_ID
6. The message continues downstream with the classified USAGE_CASE_ID

See Also

• AI Trainer — for training new AI models before using them with this Processor
• AI Model Resource — for defining the model's input/output schema, algorithm type, and hyperparameters
• AI Service — for defining the interface to an AI model
• QuickScript Language Reference — for the expression language used in rule conditions
• Using Artificial Intelligence in Workflows — conceptual overview of supervised learning in layline.io

---
